The reef is located at 360 40? 51.1? S, 1740 45? 19.6? E in 6.2 m at minimum spring low tides. This also comprises twelve units with four of the smaller Bay Ball units planted as the central core. There are four Bay Balls around the perimeter; a Pallet Ball at the Eastern point of the octagon; and one further Pallet Ball on the Southern margin. There are slate plates attached to a vertical surface of both these Pallet Balls. Another Pallet Ball is placed on the western side. The last Pallet Ball forms a tail to the south since inclement weather prevented it being placed in geometrical perfection. All the spacings are again about 1.0 metre.

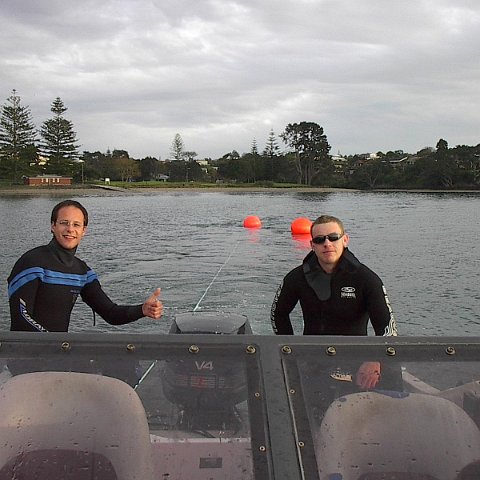

The reef is located at 360 40? 52? S, 1740 45? 14.8? E in 5.5 m at minimum spring low tides. It comprises twelve concrete hemispherical shells made of 60 MPa concrete with microsilca added. There are nine Bay Balls [mass approximately 300 kg, height 0.7 m, base diameter 1.0 m with about 10 piercings] in a N ? S line. At the Northern end, there is a Pallet Ball [mass approximately 1200 kg height 0.9 m; base diameter 1.2m with about 15 piercings]. ]. At the Southern end, there are two further Pallet Balls; one with a 30x30 cm slate plate attached to a vertical surface and the other with a plate attached to close the top hole of the unit; i.e. in a horizontal position. These slates are the same as the ones utilised by current E. O. S. intertidal studies. Placement took approximately 6 weeks because of tide/weather/logistical constraints. All 12 units lie on a N ? S line parallel to the beach with an angle of approximately 450 between this line and the zigzags and about 1.0 metre between each.
